TS Contractors are the specialists in machinery for prestressed hollow core slab and pile production. The machinery has been developed to meet International requirements with the use of the highest quality parts and components suitable for your local conditions.

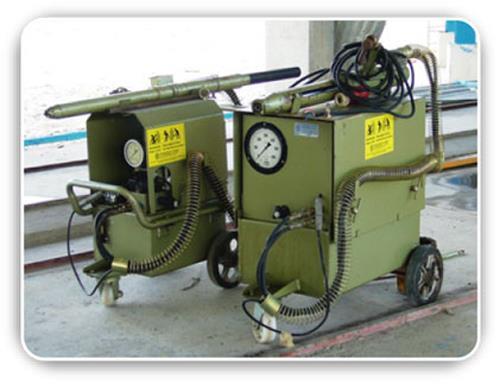

Pre Stressing Equipment includes 2 units consisting of:

Pre Stressing Unit for PC Wires 4~7mm

Capacity 3000kg Ram Stroke 500mm, Max. Pressure 3000psi (210 Bars)

Pressure Control Relief Valve, Motor 2hp, 380V, 50Hz, 3-Phase

Pre Stressing Unit for PC Strands 9.3~12.7mm

Capacity 20000kg Ram Stroke 400mm, Max. Pressure 3000psi (210 Bars)

Pressure Control Relief Valve, Motor 5.5hp, 380V, 50Hz, 3-Phase
